Instruction Manual Battery Adapter

Logo

operating instructions

This manual is valid for the following battery adapter series:

These operating instructions are valid for the following battery adapter series:





article number

Aldi Ferrex 20-40V

110006, 110008

Bosch GBA

110012, 110001, 110104, 110105

Bosch PBA

110037, 110038

Einhell X-Change

110013, 110009, 110089, 110090

Hilti B12

110101

Hilti B22

110007

Hilti B22 Nuron

110085

Hilti B36

110068

Lidl X20V

110040, 110041, 110092, 110092

Lux AK-20

110076, 110078

Makita BL10xx

110049, 110048

Makita BL14xx / BL18xx

110019, 110015, 110004, 110087, 110093

Metabo 18V/36V

110051

Milwaukee M18

110016, 110017

Milwaukee M28

110061

Powerworks

110096




example Pictures
1. Intended Use

This adapter is intended only as a backup power supply for electrical devices

such as:



  • lamps or lighting

  • radios

  • ...



2. General safety instructions
  • Do not use outdoors, avoid moisture and high temperatures.

  • Only use the adapter with the intended battery model.

  • Do not use the device if it is damaged or cracked.

  • Modifications to electrical devices may only be carried out by qualified personnel.

  • Improper use may result in damage, short circuits and fires.



3. commissioning / installation

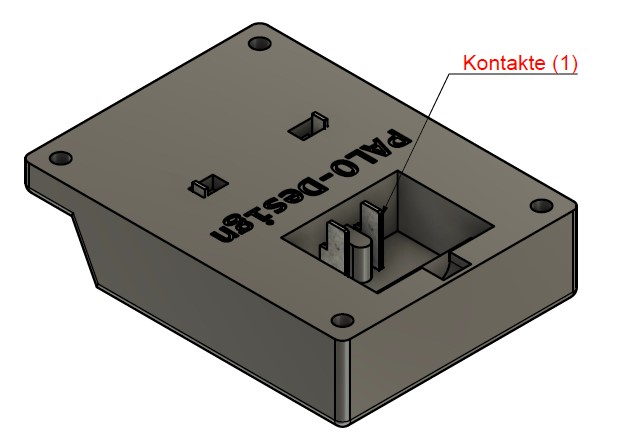

  • The electrical connection can be made by soldering directly to the contacts (1) on the back or by using suitable flat plug sleeves (cable lugs). Please ensure the polarity is correct (+ and -), incorrect polarity can cause damage to the device and battery.

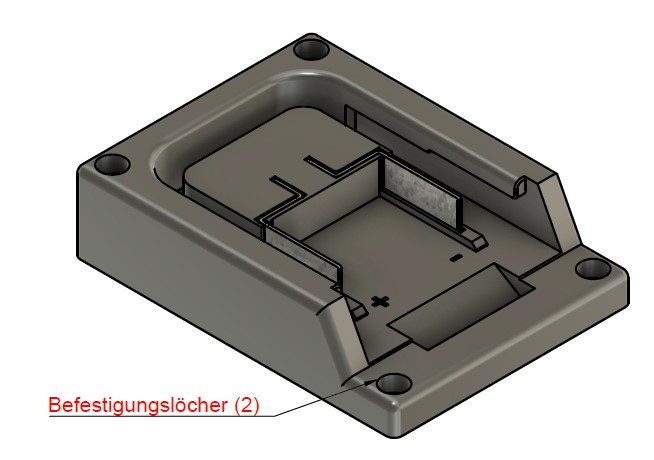

  • The adapter is attached using screws in the mounting holes provided (2).



4. use
  • Insert your battery into the adapter until it clicks into place.

  • The device is now ready for use and your battery is firmly connected to the adapter.

  • The battery can be removed again by pressing the release button.
